Quick Details

  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: Firstrate
  • Model Number: FST500-202
  • Max. Voltage: 30V
  • Pressure type: gauge pressure, absolute pressure
  • Pressure Ranges bar: 1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600
  • Control Output: PNP NPN Relay
  • Signal Output: 4~20mA/0~10VDC
  • Supply voltage: 12~30VDC

Packaging & Delivery

Packaging Details standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance

Product Introduction---  FST500-202    electrical digital pressure switchpressure switch for water pump

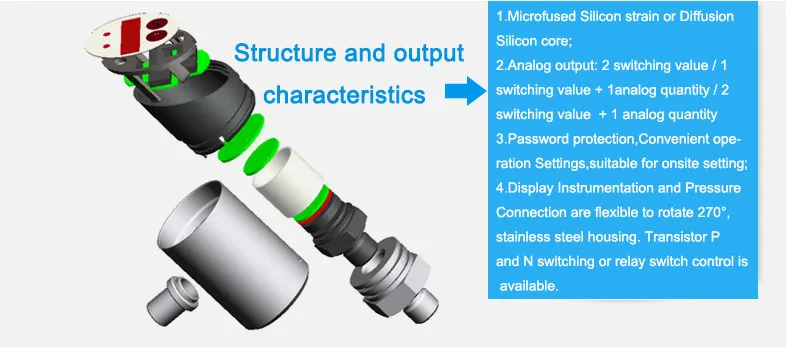

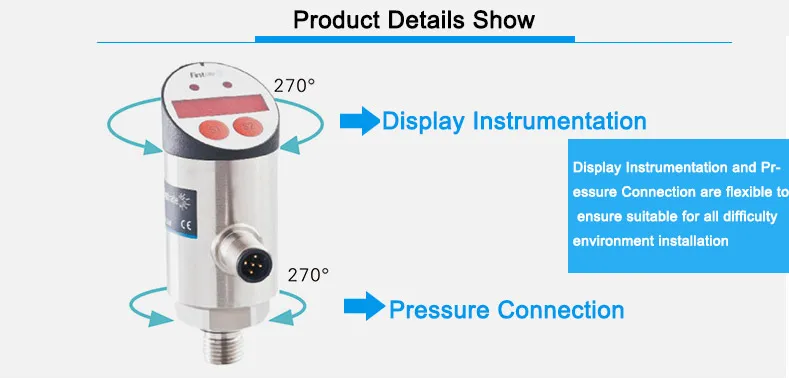

The FST500-202 Electronic Pressure Switch Can provide a continuous pressure monitoring and set the pressure switching point without supercharging. User can easily set the switching point and back-to-switching point without supercharging equipment.  And can define the switch type(normal open/close), damping time,the relay and NPN / PNP switch. The overload is from several uA to 500mA. The product can transfer the collected pressure signal into standard current and pressure signal output. The display and connection can rotate freely within 330 degrees so that it can be easily installed.



Applicable Scope

  • Gas-liquid dual-capable can be used in : pump control, storage tank monitor, liquid level control, filter blocking and monitor, leakage surveillance.
  • Industrial process testing and control
  • Self-controlled and constant-pressured water supply in building
  • Petrochemical, environmental protection, water conservancy, light industry, machinery, metallurgy
  • Measuring and control in other systems



Technical Indexes:

Project

                           Parameter

Standard range

Pressure type: gauge pressure, absolute pressure.

Pressure Ranges(bar):1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600

Pressure Ranges(psi):15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K

Technical Index

Accuracy

±0.3%FS  ±0.5%FS

Pressure Adjust

0%~100%FS

Hystersis adjust

0%~40%FS

Control Output

PNP,NPN/ Relay

Signal Output

4~20mA/0~10VDC

Supply voltage

12~30VDC

Medium Temperature

-30°C~+85°C

Environment Temperature

-20°C~+85°C

Longterm Stability(one year)

±0.1%FS

Overload

200% FS

Temperature Drift

±0.1%FS/10°C

Housing

304 stainless steel

Connection

316L stainless steel

Environmental Protection

IP65

Pressure connection

M20×1.5  G1/4  1/4 NPT(male) or custom-made





Price, Package, Service

1, Price : EXW,  FOBChangsha

2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and certificateCarton Packing, Water Proof, Shock Resistance
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
