Quick Details

  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: Firstrate
  • Model Number: FST800-211A
  • Pressure Type: gauge pressure absolute pressure sealed pressure
  • Pressure Range(bar): 5 10 16 25 40 60 100 160 200 250 300 400 500 600
  • Signal output: 4~20mA 0.5~4.5VDC 0~5VDC 0~10VDC
  • Accuracy: ±0.5%FS ±1%FS
  • keyword: Industrial universal pressure senor
  • Compensated Temperature: -20~+85°C
  • Working Temperature: -40~+85°C
  • Overload Pressure: 300% FS
  • Burst Pressure: 500% FS
  • Certificates: CE RoHS

Packaging & Delivery

Packaging Details standard export packing , including instructions and certificate/ Carton Packing, Water Proof, Shock Resistance
Delivery Time 8-12 working days
Our Advantages

Mhy Choose Our Firstrate?

♦ Focus on sensor production for more than 50 years;
♦ Factory directly price;
♦ 12 months free repaire warranty;
♦ Firstrate products have past CE,ROHS,ISO9001 etc certificat.



Mhy Choose Our Firstrate Pressure Sensor / Pressure Transmitter?

♦ Micro-fused Strain Gauge Technology;
♦ Efficient lightning protection and strong anti RFI&EMI protection;
♦ Advanced digital temperature compensation and wide working temperature scope;
♦ High sensibility,high accuracy,high frequency response and long-term stability.

Product Description

FST800-211A CE and RoHs certified factory general industrial gas and liquid pressure sensor

FST Pressure sensor can be used in the pressure testing in Pneumatic System, hydraulic system Meet the needs of the aerospace, defense, engineering machinery, automobile industry, air conditioning, refrigeration and other industrial facilities
Product Introduction

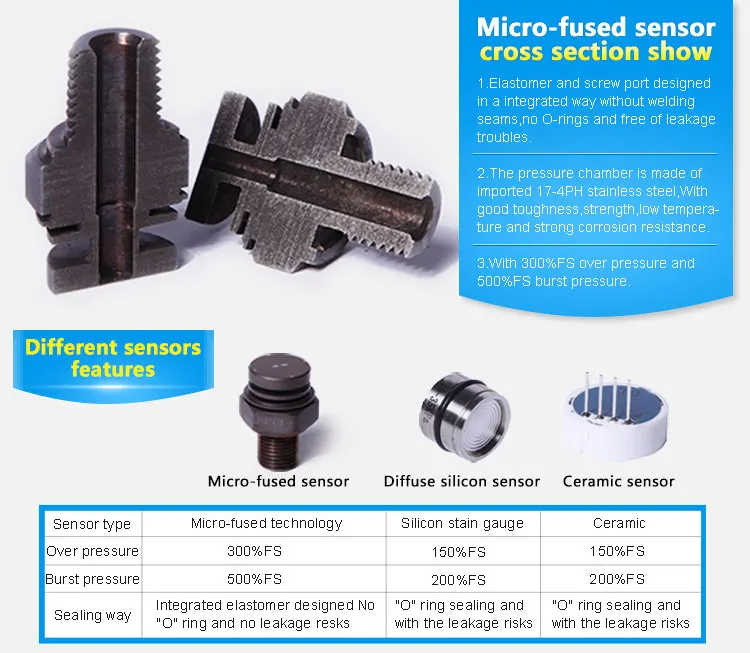

The FST800-211A universal industrial pressure sensor is a silicon MEMS strain gauge sensor which is glass bonded to a stainless steel diaphragm. It avoids influences on product caused by temperature, humidity, mechanical fatigue and medium, thus to improve its longterm stability in the industrial environment. Its pressure chamber is made of 17-4PH stainless steel in an integrated way without welding seams or O-rings and free of leakage troubles. The sensor adopts the advanced digital Compensated Temperature and is featured with the strong interference resistance, wide working temperature scope and longterm stability, etc. The series products provide several optional pressure connections and electric connections for customers.
Product Features

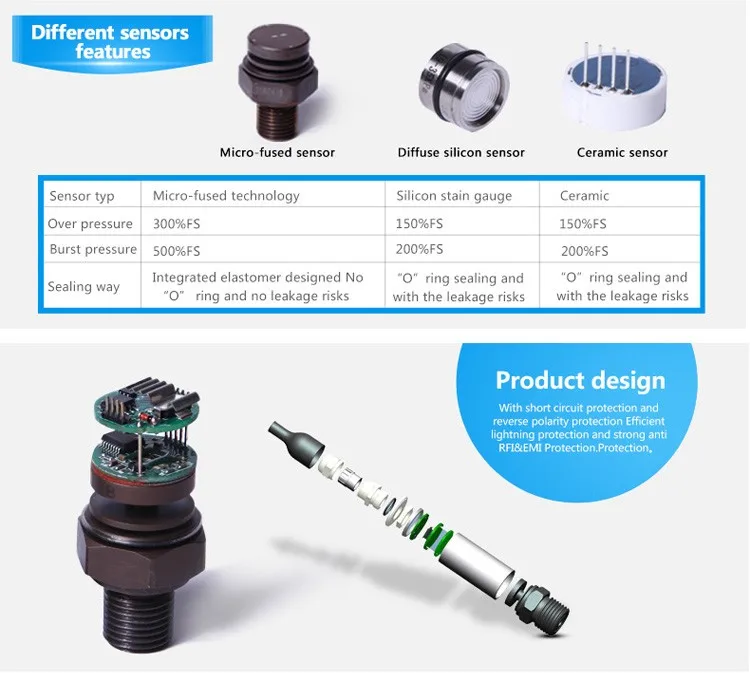

Advance Microfused Silicon Strain Gauge, whole-designed elastomer, free of leakage troubles
Efficient lightning protection and strong anti RFI&EMI protection.
Advanced digital temperature compensation and wide working temperature scope
High sensibility, high accuracy, high frequency response and longterm stability
Applicable Scope
Industrial process testing and control
Automatic testing system
Hydraulic and pneumatic systems
Pump station and water treatment system
Industrial machinery manufacture

Standard Range

Pressure Type: gauge pressure  absolute pressure  sealed pressure
Pressure Range(bar):1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600
Pressure Range (psi): 15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K
Technical Index
Signal output4~20mA    0.5~4.5VDC     0~5VDC      0~10VDC
Signal line specification2wire       3wire       3wire         3wire
Power supply9~30VDC   5VDC       9~30VDC    15~30VDC
Accuracy±0.5%FS  ±1%FS
Longterm Stability (1 Year)±0.5%FS
Frequency Response (-3dB)3.2kHz
Compensated Temperature-20~+85°C
Working Temperature-40~+85°C
Storage Temperature-40~+105°C
Overload Pressure300% FS
Burst Pressure500% FS
Mechanical Vibration±20g
Impact (11ms)100g
Environmental ProtectionIP65
Wetted Parts 17-4PH

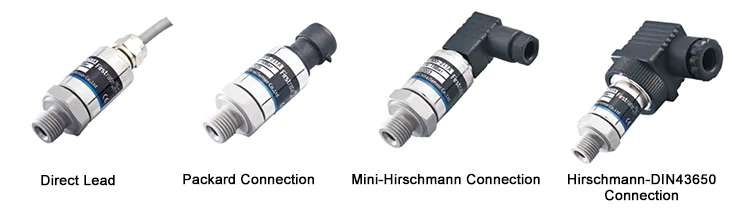

Electrical connectionPackard  Hirschmann(Mini)  Hirschmann(DIN43650)  M12Waterproof cable (Direct lead)
Pressure connectionM20×1.5  M12×1.5  G1/4  NPT1/4  R1/4  7/16-20UNF
Electromagnetic compatibility(EMC)EN61000-6
CertificatesCE   RoHS

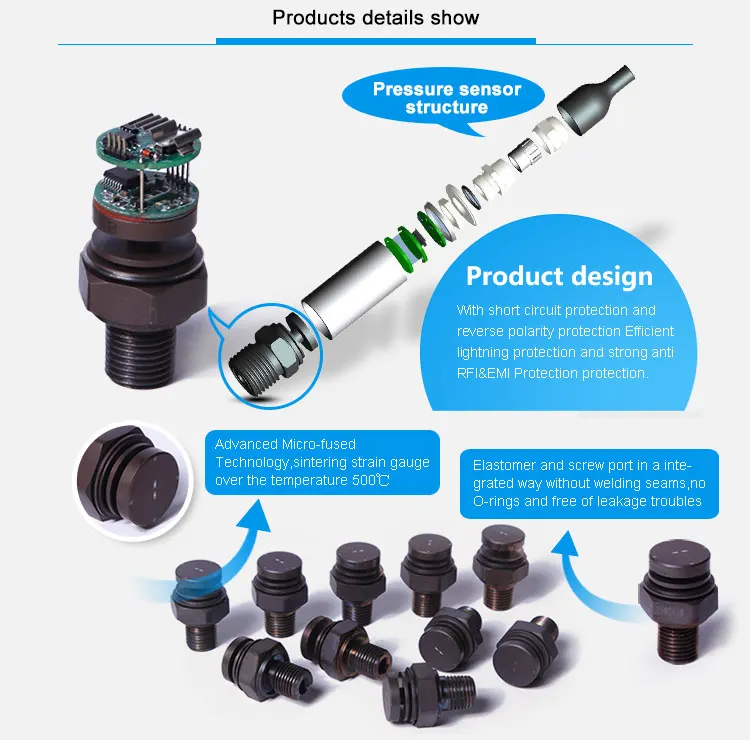

Product Detail Show

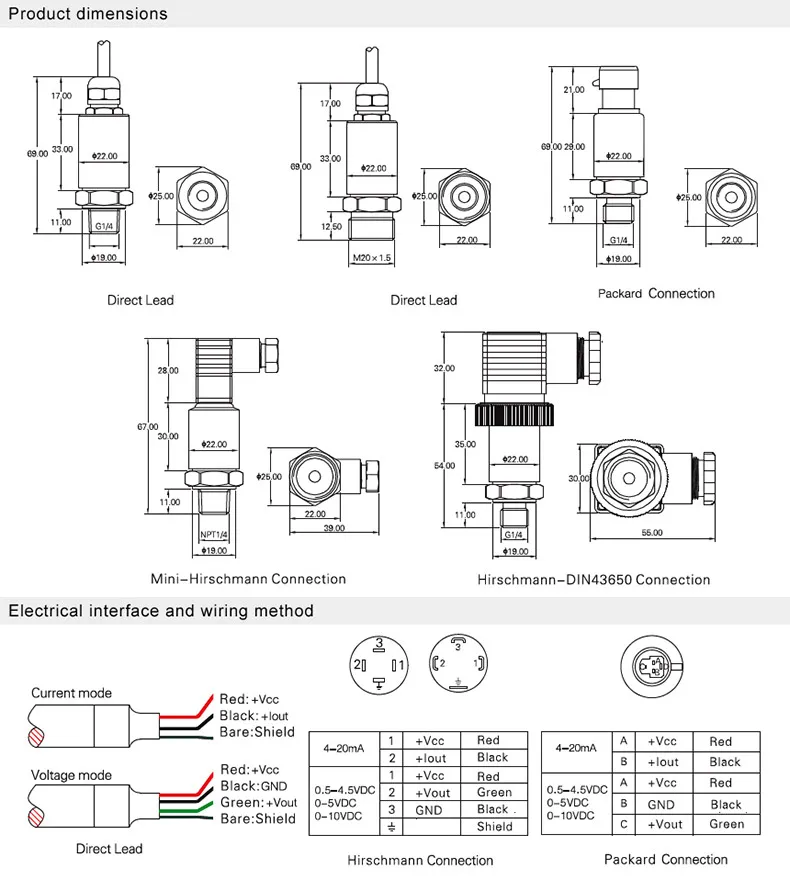

Dimension & Wiring

Application

Company Information

FAQ

Q:What detailed information do I need to provide if I want to place an order?
A:We’d like to know the following information: application, medium, working tempertrature, testing range, output, screw port, electrical connection, and other related parameters.



Q:Are you manufacturer or trading company?
A:We are manufacturer with more than 50 years of experience. Our plant add is No 18# of Electrolux Avenue, Muyun Industrial Park, Changsha, Hunan, China. Welcome to visit our company!



Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex etc,we can offer certificates.



Q:Can we use our logo on the products?
A:Yes.We can provide OEM service and make the laser logo for you.



Q:What is the warranty of your products?
A:Our service is free exchange within three months and one year maintenance guaranteed for non-man-made damages.



Q:What is yor MOQ?
A:We have no MOQ limits, 1 piece for test purpose at first is acceptable.



Q:What's the means of transport?
A:Goods can be sent by DHL / FEDEX / UPS / EMS / TNT / China Post or by sea etc. Freight prepaid or Freight collect are acceptable.
