FST200-221 Digital Wind Speed And Wind Direction Sensor Display Controller with a display

FOB Reference Price:Get Latest Price
US $69-120 / Sets | 1 Set/Sets Digital Wind Speed And Wind Direction Sensor Display Controller (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Firstrate
Model Number:
FST200-221
Usage:
Speed Sensor
Theory:
Hall Sensor
Output:
Analog Sensor
Contact capacity:
1-2 set Relay
contact output:
10A/220VAC
Testing Range:
Wind speed: 0-50m/s, Wind direction: 0-360°
Display resolution:
Wind speed : ±0.1m/s, Wind direction: ±5°
Power supply:
12~30VDC, 110VAC, 220VAC
Communication:
Temperature: -20°C~+50 degree
External supply for sensor:
12VDC or 24VDC
Application:
Working aloft testing and control, Engineering machine testing
Certificate:
CE RoHS
Product name:
Digital Wind Speed And Wind Direction Sensor Display Controlle
SupplyAbility
SupplyAbility:
Set/Sets per Month Digital Wind Speed And Wind Direction Sensor Display Controller
Packaging & Delivery
Packaging Details
standard export packing , including instructions and certificate
Port
Changsha
Lead Time :
7-10 working days after receipt of full payment

  FST200-221 Digital Wind Speed And Wind Direction Sensor Display Controller with a display

Our Advantages

Mhy Choose Our Firstrate?

♦ Focus on sensor production for more than 50 years;
♦ Factory Outlet, Low price;
♦ 12 months free repaire warranty;
♦ Firstrate products have past CE, ROHS, ISO9001 etc.





Product Description
Product Introduction

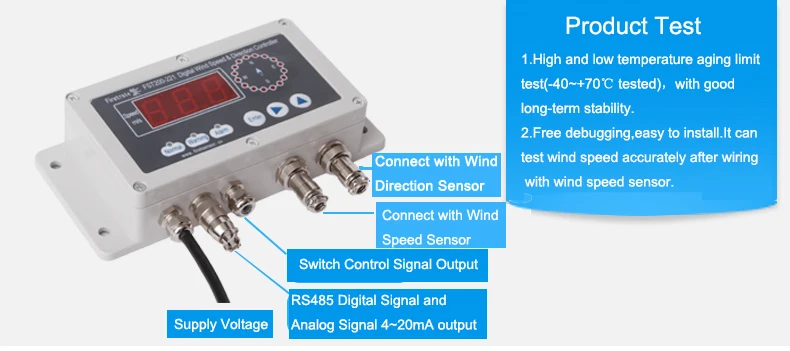

FST200-221 Digital Wind Speed And Wind Direction Sensor Display Controller with a display based development, used to measure the instantaneous wind speed and direction and the mean wind speed and direction, with a display, limit alarm and data communication functions. the design has a strong anti-RF, anti-electromagnetic interference protection circuit, with good reliability, high precision display advantages. Used in factories, power, ports, factories, mines, wind turbines and other large machinery and equipment to monitor wind speed and direction.
Product Features
♦ Adjustable buttons on panel, easy to set in the filed
♦ Protection circuit for strong anti RFI & EMI
♦ Contact capacity: 1-2 set Relay contact output, 10A/220VAC
♦ Built- in Relay, early warning and alarm function
Applicable Scope
♦ Working aloft testing and control
♦ Engineering machine testing and control
♦ Port and wharf environment testing and control
♦ Other industrial automation about wind speed and wind direction testing and control
Technical Index
Testing rangeWind speed: 0-50m/s,   Wind direction: 0-360°
Display resolutionWind speed : ±0.1m/s,  Wind direction: ±5°
Display errorWind speed : 3%FS,  Wind direction: ±22.5°
Signal input  (Optional)Wind speed: Voltage: (0-5/10V), Current :(4-20mA), Pulse
Wind direction: Voltage:(0-5/10V), Current :(4-20mA)
Power supply12~30VDC,    110VAC,  220VAC
External supply for sensor12VDC or 24VDC
Contact capacity2set Relay contact output, 10A/220VAC
Wind speed alarm controlPre-alarmRelay 1 action, terminals No1, COM1 connectionNormalNC1, COM1 connection
AlarmRelay 1 action, terminals No1, COM1 connectionNormalNC2, COM1 connection
Relay 2 action, terminals No2, COM2 connectionNormalNC2, COM2 connection
Buzzer, promoting the sound output
Alarm:Red LED twinkle, the buzzer ring continuously,  Relay contact action
Analog outputIout1, Iout2 4~20mA current loop output, set the wind speed and direction
corresponding to the linear range (less than 500 ohm load);
Communication RS485 digital communication output
Working EnvironmentTemperature: -20°C~+50 degree
Humidity ≤80%RH
Dimension

Company Information

About Hunan Firstrate Sensor Co.,ltd

Hunan Firstrate Sensor Co.,ltd is a high-tech joint venture specialized in researching, manufacturing, and sales of sensors and transmitters. Our products include Pressure sensors and Transmitters, Temperature sensors and transmitters, Liquid-level sensors and Transmitters, Wind Speed & Direction sensor, and Intelligent Control Instruments. They are widely used in the field of aviation & aerospace, national defense & military project, engineering machinery, railway & urban railway system, automotive electronics system, HVAC, air compressor, textile, petrochemical, coal mines and other industrial automation control.

FST200-221 Digital Wind Speed And Wind Direction Sensor Display Controller with a display

More About Firstrate Company

Firstrate is committed to the research & development of international leading Microfused technology, adopts the Microfused Silicon Strain Gauge production technique ,CAN ( Controller Area Network) technology and wide temperature digital compensation data system. MEMS sensors have been recognized and highly praised by scientists and engineers from industrial automation. At present, our company has declared 12 national invention patents, 30 plus utility-model patents. And have got the certificates of CMC, CE, Safety & Flame-proof certification and ROHS.

Our Certifications



Our Services

Price, Package, Service

1, Price : EXW, FOBChangsha
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time :  7-10 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty

Contact us
